Ready to Rally with LS Power: The Bartel’s 1973 Datsun 240Z

Filed under: 240z,Performance
by Alvin G @ 2:40 pm on October 12, 2024

At Z Car Garage we love keeping Z’s on the road. From concours-level restorations to light refurbishments, helping a client realize their vision is our passion. The Bartel family shipped their 1973 Datsun 240Z from Arizona for mechanical and cosmetic sorting, ZCG-style. Our Z Car Garage Big-Brakes, Z Car Garage CV Axles, chassis tuning and dyno tuned LS3 V8 engine transformed this Z into the dream car Jeff and son Ryan enjoy at rally events.

The Bartel’s Z Story

Before we dive in to the project let’s hear how the family got their Z car…

JEFF: My son and I began looking for a Datsun project car for pre-1975 Targa rally driving events in late 2018. We scoured the internet for resto-mod 510’s or S30’s that with modern drivetrains for reliability and maintenance. After a long and exhaustive search we came across a 1973 Datsun 240Z with an LS3 V8/T56 on one of those trendy online auto auction sites. On paper the car appeared to have just about all of the desirable upgrades, including larger brakes from an OEM, coilovers, a LSD diff, aluminum radiator, fender flares, 17” wheels, Vintage Air air conditioning, fuel cell, decent gauges, extensive body work and paint and nausea-inducing rear wing. We decided to bid and won what seemed like Z at the right price…

…Upon test driving the car and wearing the most rose colored glasses one could wear, we still found that there were a lot of issues. Soon after ownership we took the car to a couple of repair shops to get our list of issues addressed, but quickly found the level of service and Z Car knowledge to be lacking everywhere. After coming out of those suspect shops we entered our first CA Targa event early 2019, and couldn’t even complete the first day of the event. A combination of broken diff and clunking suspension cut our event short. We decided to give Rob and Z Car Garage a try after seeing so many of their successes online.

Mechanical Sorting at Z Car Garage

We agreed to inspect the car and during that process found many of the car’s important systems were in need of complete replacement.

ROB: It was very important to Jeff and Ryan for this Z to be enjoyable and up to the task of vintage rally events. We obliged to help them with that goal in several visits. I was Z car purist when I was younger, thinking one should always install Nissan engines into a Nissan… with time and wisdom it is hard to deny that LSx engines are pretty stellar with respect to power and packaging. It was time to make this Z a ZCG-style LS-powered S30.

JEFF: While tuning and driving the car Rob noticed that the existing fuel pump system was not providing sufficient fuel to the engine especially during spirited cornering (not to mention extremely noisy fuel pump and strong fuel smell in the cabin). Rob and his team replaced the underperforming fuel pump and delivery system, relocating the pump to a safer and quieter location, installed a Hydramat fuel pickup system in the fuel cell to avoid starvation during heavy cornering. A new dual exhaust system with X-pipe was also installed from headers back to the tips to improve flow and clearance.

Z Car Garage Big-Brakes

We are proud to have several of our ZCG products on Bartel’s 240z. We installed our Z Car Garage Big-Brakes (for small wheels) which have the been standard on numerous ZCG builds. As fellow S30 owner/racer Glenn C mentioned in his review, on top of braking performance, pedal feel is extremely important and our Big-Brakes deliver. This is a direct result of working with engineers at Stoptech to create a totally bolt-in solution requiring no M/C change or additional proportioning valve/adjustments. All fitting behind a 15″ Watanabe or Panasport wheel (and some 14″ wheels) and retaining factory emergency brake lever.

ROB: A staple of the ZCG upgrade package is a set of brakes. So we did the ZCG BBK, with new brake M/C and new booster. Factory handbrake functionality IS retained! Suspension was upgraded to T3 f/r coil-overs done in our signature black. Thanks Gabe for allowing to have our own color! We also did f/r wheel bearings and full alignment.

JEFF: The team at Z Car Garage began with replacing the poor performing brakes with the complete ZCG Big Brake Kit. With the car now stopping as it should, they next turned their attention to the suspension. A set of front and rear coil-overs were installed on the car along with adjustable T/C rods and camber plates arms and so on. The car was then height adjusted and corner balanced.

Cooling and Driveline Upgrades

On their first visit we changed the spring rates to improve handling and put some friction modifier in diff. At the very end of this visit unfortunately the car was making some strange noises. We suspect the previous builder had starved the engine of oil a few times leading to rod knock. so we send it to Rebello for a rebuild. In spring of 2021 we had made enough power and focused on cooling modifications with a new fabricated a fan-shroud setup.

JEFF: With brakes, handling, fuel and exhaust systems addressed, we set out on our second CA Targa event in June 2021. This adventure took us through the CA desert and across the Sierra Nevada Mountains two times. If you live on the west coast you might remember the incredible heat wave with temperatures approaching 115 degrees F. This caused severe over heating problems with the existing cooling system, which made for many unplanned stops along the way. While we did have many great conversations waiting for the car to cool, some with our feet in a Sierra Nevada river, we knew this was unsustainable. Another issue that became noticeable during our second event was the wicked noises coming from the clutch, rear differential as well as the driveshaft. On the positive side of the coin, the car turned, stopped and handled incredibly well and we managed to complete the roughly 1,500 mile event under our own power. We were also able to establish that the car is extremely fast and with that the stock seats and belts were just not quite enough to hold us in place or to provide even the temporary illusion of safety. Woohoo!

Next up were the cooling, cold air intake, clutch, rear diff and driveshaft upgrades along with safety and comfort improvements. We installed a new aluminum radiator, rerouted the upper and lower hoses and changed the cold air intake system to reduce intake temperatures. The transmission got an upgraded flywheel. kevlar/ceramic, 11″ 26-spline clutch, new Tilton T/O bearing and aluminum driveshaft from South Bay driveline…the Z was now ready to drive anywhere.

Our Z Car Garage CV Axles help transmit power to the ground and ensure smoother operation compared to your standard half shafts. We have over 200 CV axle kits on customer cars and we are stoked with all of the positive feedback. ZCG CV axles were installed and the rear differential was rebuilt with a new R180 OSG LSD unit, bearings/seals etc.

Dyno Tuning

Rob dyno tuned the LS via HPtuners software. It put down a stout 408hp/387tq to the wheels:

Enjoy this extended video of Ryan and Jeff’s Z including dyno runs, test drive with Rob and engine/exhaust sounds…volume up!

Wheels

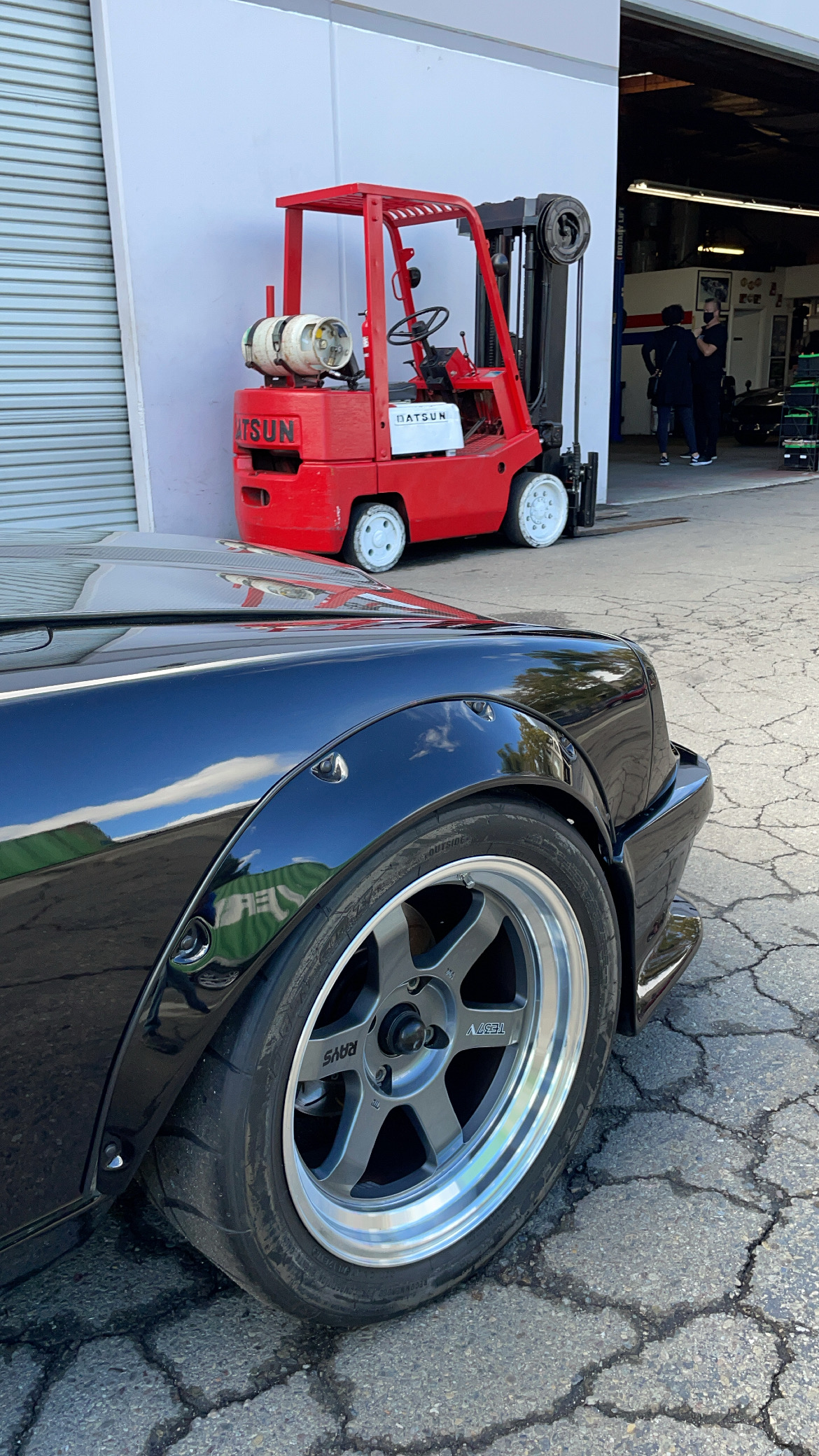

Wheels make the car and a set of VOLK TE37V wheels from another client project ended up replacing the 17″ Rota wheels the Z came with. The TE’s transformed the car!

Details

After running a successful Targa event in 2022, the Bartel’s returned to ZCG in 2023 for a small list of improvements including rear hatch body work, installing a BRE type rear wing, minor improvements to the suspension, turn signal/high beam and seat rail repairs along with getting the AC system running more reliably. These are the details we excel at:

The previous owner left several holes in the firewall behind the evap box, so we removed all A/C components and made a new seal to isolate the cabin from exhaust and heat. In the back, we fixed the rear strut after locating a spacer placed in the coil-overs. With the A/C system sorted, we did hatch seals and pulley/belt on the compressor were all properly aligned.

If you are doing spirited driving or long road trips, the Recaro Specialist seat is the best for your Z car! More photos of the interior and roll bar in the galley below

JEFF: To improve safety and hold us in place ZCG installed an Auto Power roll bar with. custom removable harness bar. Rob convinced us upgrade the stock seats to Recaro Specialist seats and 5-point harness system, along with front and rear strut tower braces for increased rigidity. New Hella H4 headlights were also added to replace the original ones that barely worked. Ryan and I had Rob’s team add a 330mm Momo steering wheel.

Exterior paint by our man William, modified rear spoiler some BRE side-view mirrors top the cosmetic changes:

Driving is Believing

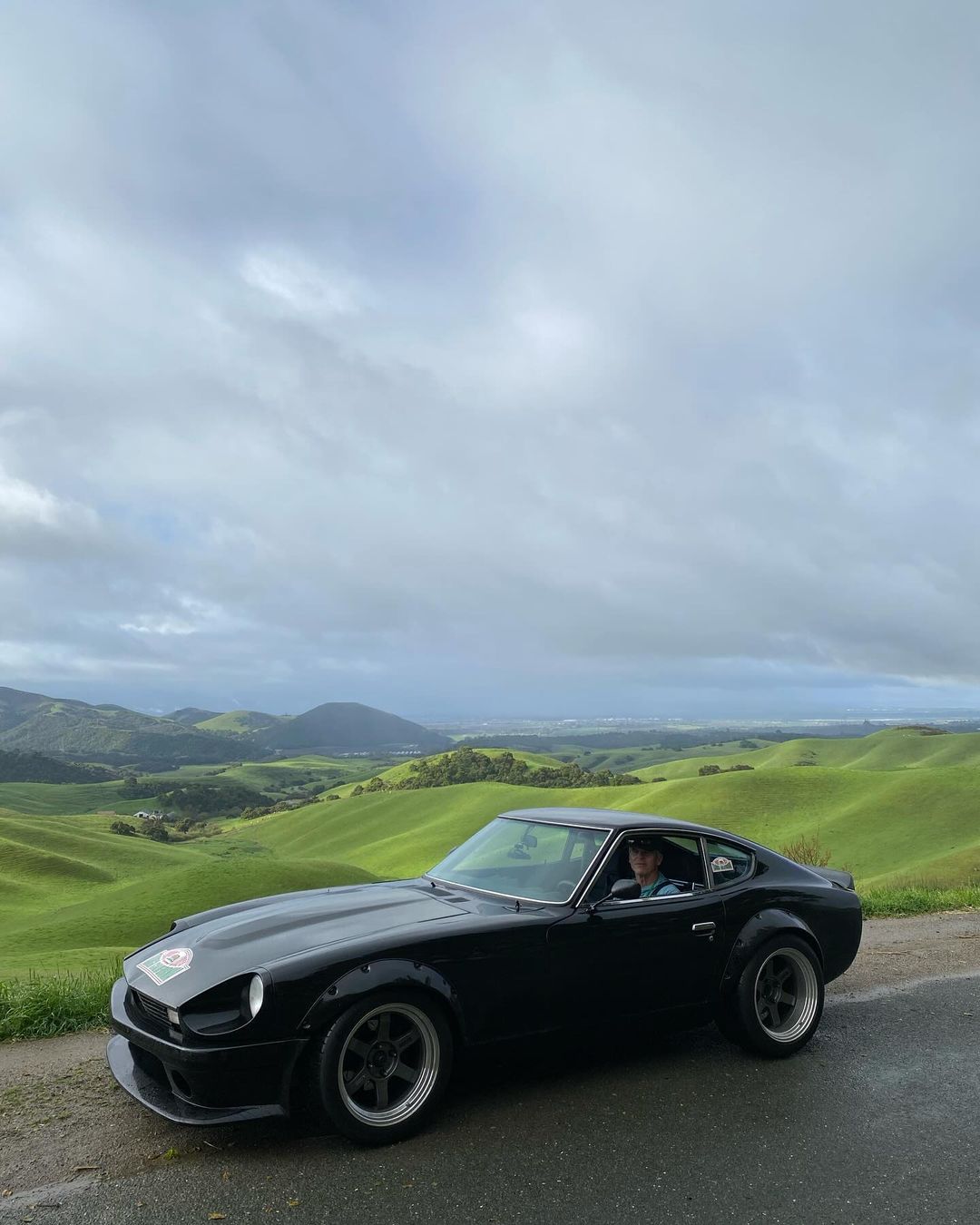

Jeff lives in Central CA while Ryan lives in Arizona. They share this car Father and Son and we get reports from each of them sharing how much they love the car now.

JEFF: With cooling, driveline, safety and comfort addressed and plenty of test miles on the car, we set out for our third CA Targa event in May 2022. This event took place close to home in the Paso Robles wine country. The event was over 1,000 miles, covering many excellent canyon roads. Starting with a 390 mile bonsai run from Phoenix AZ to Los Angeles CA and continuing for up through the central coast of CA. During that time, we beat on the car mercilessly, and the car ran pretty darn flawlessly. Needless to say, third time was the charm, and the trip was a smashing success.

The Father/Son duo would go on to successfully complete the Targa California rallies in 2023 and 2024, followed by numerous driving events and gatherings. Each time they were super stoked with the Z…

RYAN: Targa ‘24 is a wrap. Over 2100 miles from AZ to Monterey and back. Some fantastic roads, 2 historic race tracks, endless good times and some of the best people around. That’s Jeff Bartel grinning in the drivers seat. Getting to run the rally’s with him has been a gift. Looking forward to the next one, and hopefully the Targa AZ works out. Gonna start pre running next week.

RYAN: The Japanese Corvette on the final day of the 2023 #targacalifornia. Over a thousand miles in a long weekend with some great humans, new roads and beautiful cars. The recipe for the car is at last perfect thanks to Rob and @zcargarage. All that and to top it off I get to do that whole thing with my father. Looking forward to the first Arizona Targa this fall.
