PARTS: ZCG Big-Brakes and CV Axles for Hazel’s 1970 Datsun 240Z

Filed under: 240z,Featured Cars and Projects,Parts,Performance
by Alvin G @ 5:10 pm on April 9, 2021

Our Z Car Garage Big-Brakes and Z Car Garage CV Axles continue to win over Z-car enthusiasts locally and globally. Hazel C recently purchased a set of both for her 1970 Datsun 240Z and had them installed at Trackspec in Fremont, CA. Before we go into the installation details let’s take a look at how Hazel got into Z cars…

“My grandfather had a 510, my dad had a B210, and my uncle had a 280Z, which he passed down to my cousin, who still has it today. So, maybe you can say my passion for Datsuns is in my genes. I met the original owner, Ray, at a cars and coffee at the Blackhawk Museum in 2017. He brought the Z and I was instantly drawn to it and started chatting with Ray about his car. Ray said he first learned about the Z car while overseas serving during the Vietnam war. When he came back to the states, one of the first things he did was go to the local Walt Martin Datsun dealership in Richmond, CA and bought one brand new in September of 1970. (Fun fact – that dealership is less than 5 miles from my childhood home, where I now also live.)”

About a year later, Ray was selling his car due to health issues, so Hazel reached out to him and was able to take ownership of the Z towards the end of 2018. The car was so hard to let go, he was being very patient and picky about finding the Z’s next owner. Jokingly, Ray mentioned hanging up on people who called him saying they would LS swap the unique motor on the car. Luckily, Hazel and Ray had a sort of shared vision on the future of the Z.

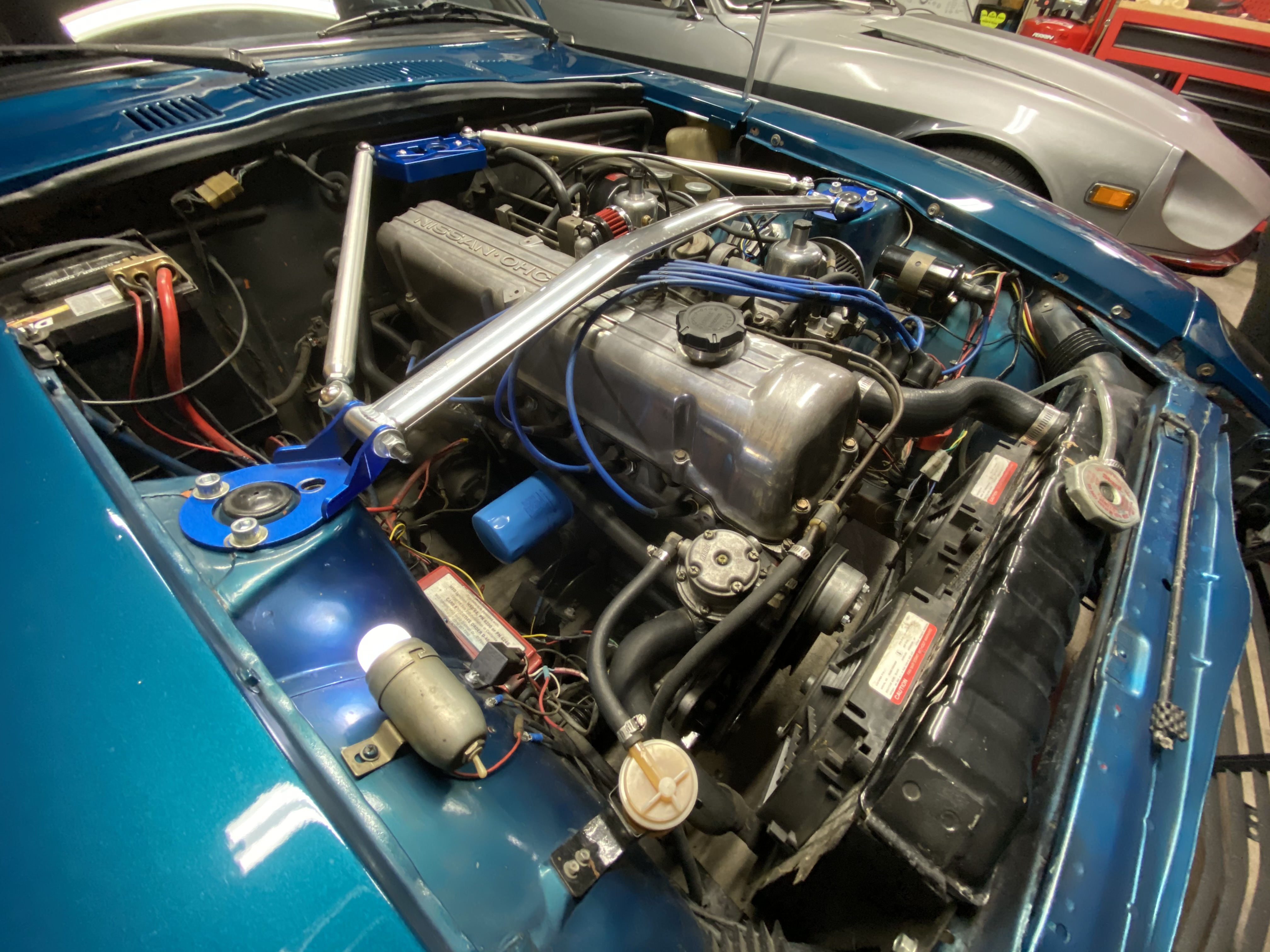

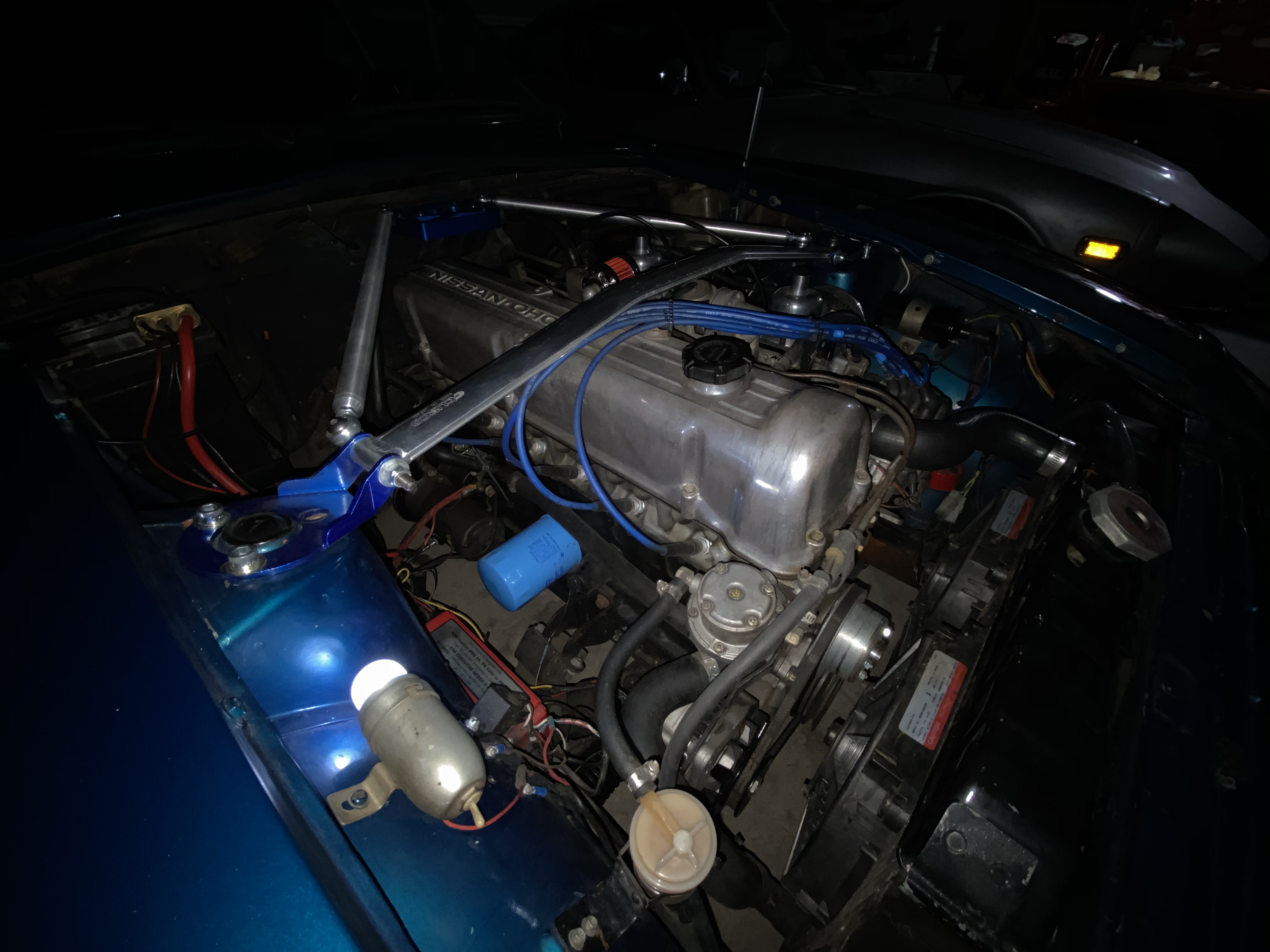

The car had a great foundation, with most of the modifications focusing on the engine, drivetrain, and body. It already had a 3.0L Rebello motor, 5-speed from a 280Z, and R200 differential. It was also repainted an eye-catching GMC teal color, with specially molded 3/4 inch steel plates welded into the fenders.

“The interior also has some unique parts. The glove box is signed by Mr. K. Ray met Mr. K in 1989 at an event that was hosted at Blackhawk Museum. There is also a Formuling France steering wheel from John Morton’s 240Z racecar. John was at Laguna Seca racing his 240Z, when Ray happened to catch him while he was on break, hanging out in the paddock. At that same event, Peter Brock had a booth set up and Ray was able to get him to sign that steering wheel as well. Since both signatures on the steering wheel have since started to fade, I was able to get Peter Brock to re-sign it, while I was at the Japanese Classic Car Show in 2019. Hopefully in the future, I’ll be able to meet John Morton and have him re-sign the steering wheel as well.”

JDM Inspiration

A few months after taking ownership of the car, Hazel traveled across Japan and pulled a lot ideas/inspiration from that trip. Visiting Shoji-Inoue at his shop in Tokyo, Star Road, gave her a better idea on how to modify a Z with both reliability and performance in mind.

“I traveled to Aichi prefecture and saw all of the radical builds dreamt up by Yoshiya Watanabe at Rocky Auto. I was also able to attend the All Japan Fairlady Z meet at Fuji Speedway. The annual event brings together all cars apart of the Z lineage from all across Japan – from the Fairlady Z S30z, all the way to the modern 370Z Z34. From what I read, there were 1,400+ Z cars in attendance that year.”

After coming back from the trip, Hazel knew she wanted to focus on modernizing suspension, brakes, and handling. She got the car with completely stock suspension and brakes; however, the motor/ drivetrain and body was upgraded prior to ownership. This was key in crafting the Z the way she wanted since all attention could be focused on the suspension and handling, instead of body/ paint. In 2019, the her Z was accepted to participate in the car show at JCCS in Long Beach. There, she saw the ZCG booth and was able to talk to Rob and check out the brake kit and CV axles.

ZCG Big-Brakes and CV Axles

Hazel and Anthony visited us and we handed them the keys to “Mrs. Butters”, our 1971 Series 1 240z shop demo car and she was sold on our Z Car Garage Big-Brakes (for small wheels) and Z Car Garage CV Axles! Butters has a way of doing this to our customers 🙂 Hazel made a very cool video of her visit/test drive, enjoy!

Big-Brake Kits Available For DIY Install!

Z Car Garage is proud to offer our Big-Brake Kit to Z-Car owners that want to perform the installation themselves. We can ship worldwide and each kit contains everything needed with a comprehensive (40-page) installation guide. Blog posts documenting all of our customers running the ZCG Big-Brakes can be found HERE. Kit details below:

As fellow S30 owner/racer Glenn C mentioned in his review, on top of braking performance, pedal feel is extremely important and our Big-Brakes deliver. This is a direct result of working with engineers at Stoptech to create a totally bolt-in solution requiring no M/C change or additional proportioning valve/adjustments. All fitting behind a 15″ Watanabe or Panasport wheel (and some 14″ wheels) and retaining factory emergency brake lever! A few details below:

Calipers: Stoptech ST42 4-piston front & rear race calipers (Alum 6061 mil-spec Type III anodized)

Rotors: 280mm x 20.6 with Alum 7075 hats

Pads: Stoptech 309 sport street pads

Blog posts documenting all of our customers running the ZCG Big-Brakes can be found HERE.

A few closer detail shots of the calipers, rotors and hardware:

As mentioned, our ZCG Big-Brake kit ships with everything needed to install and retains the factory parking brake. Hazel made a video of the Big-Brake unboxing:

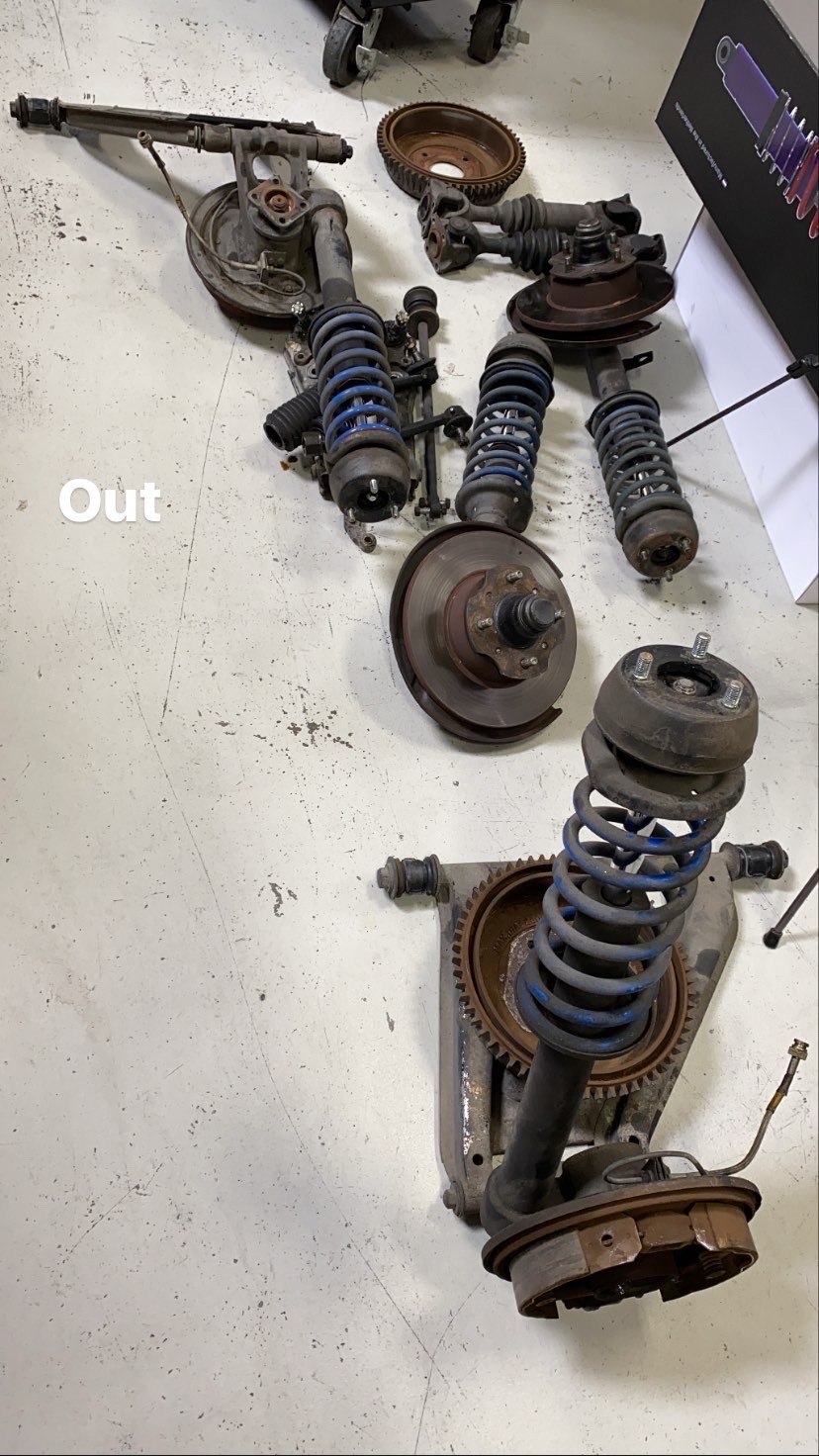

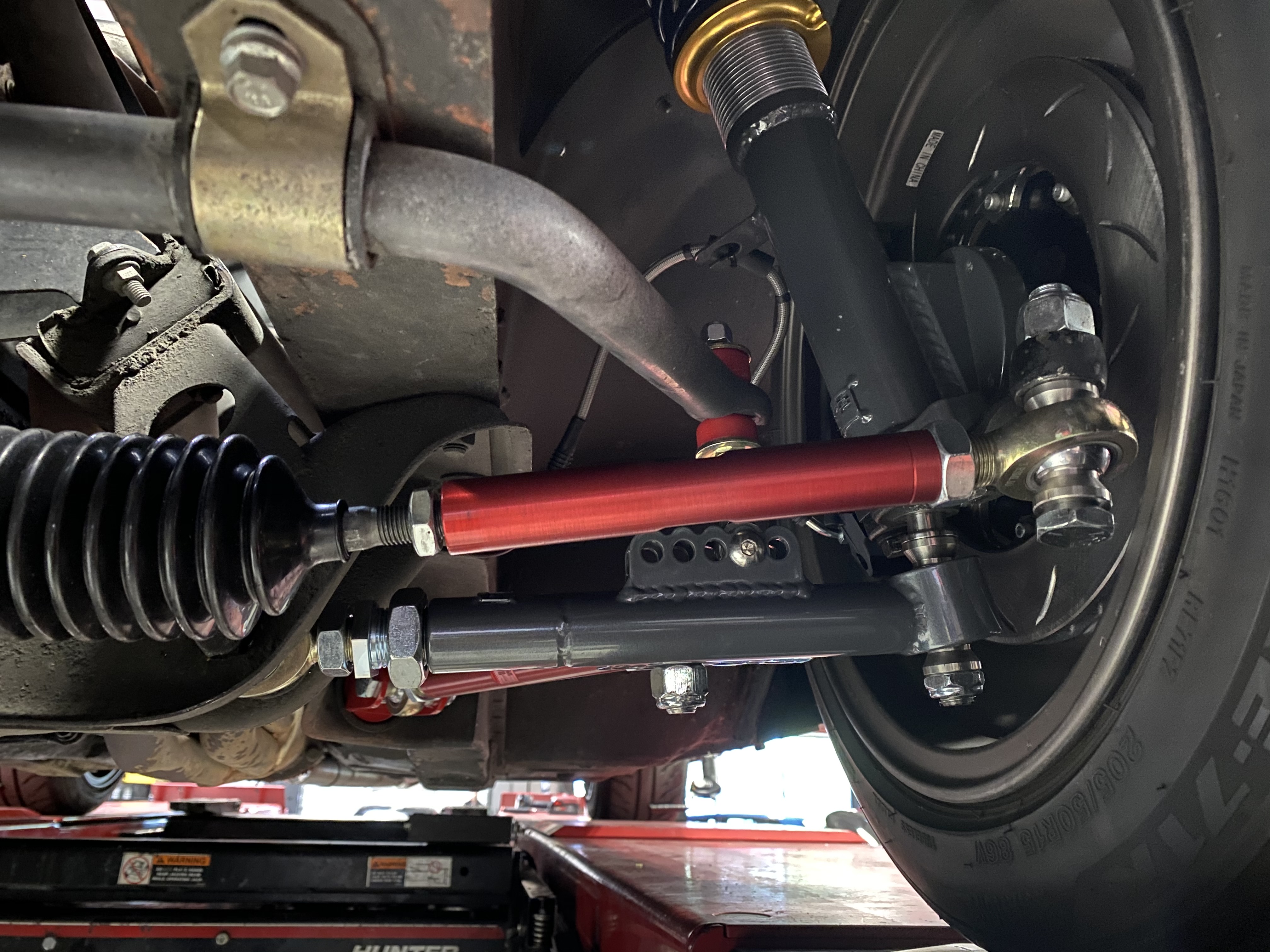

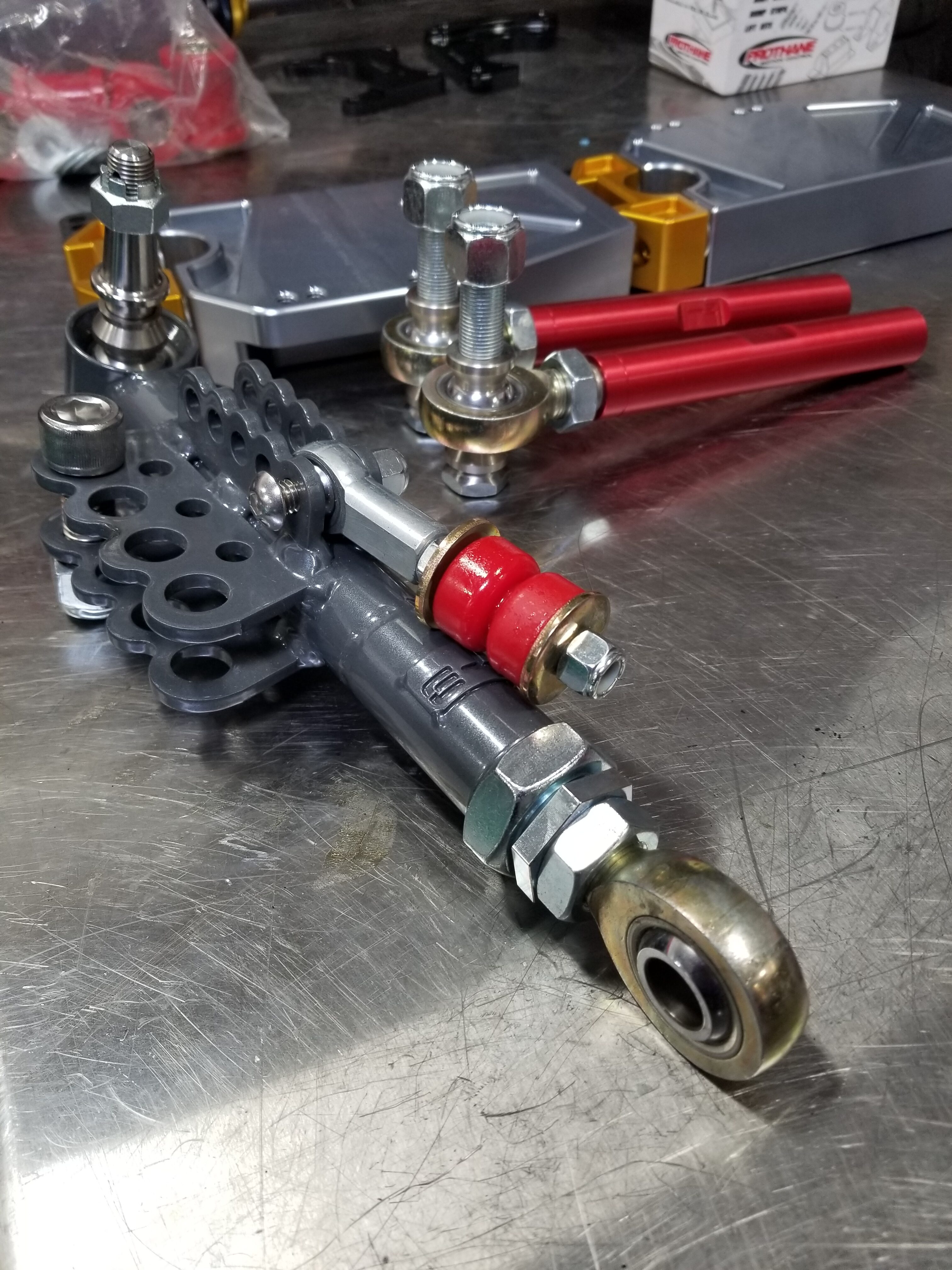

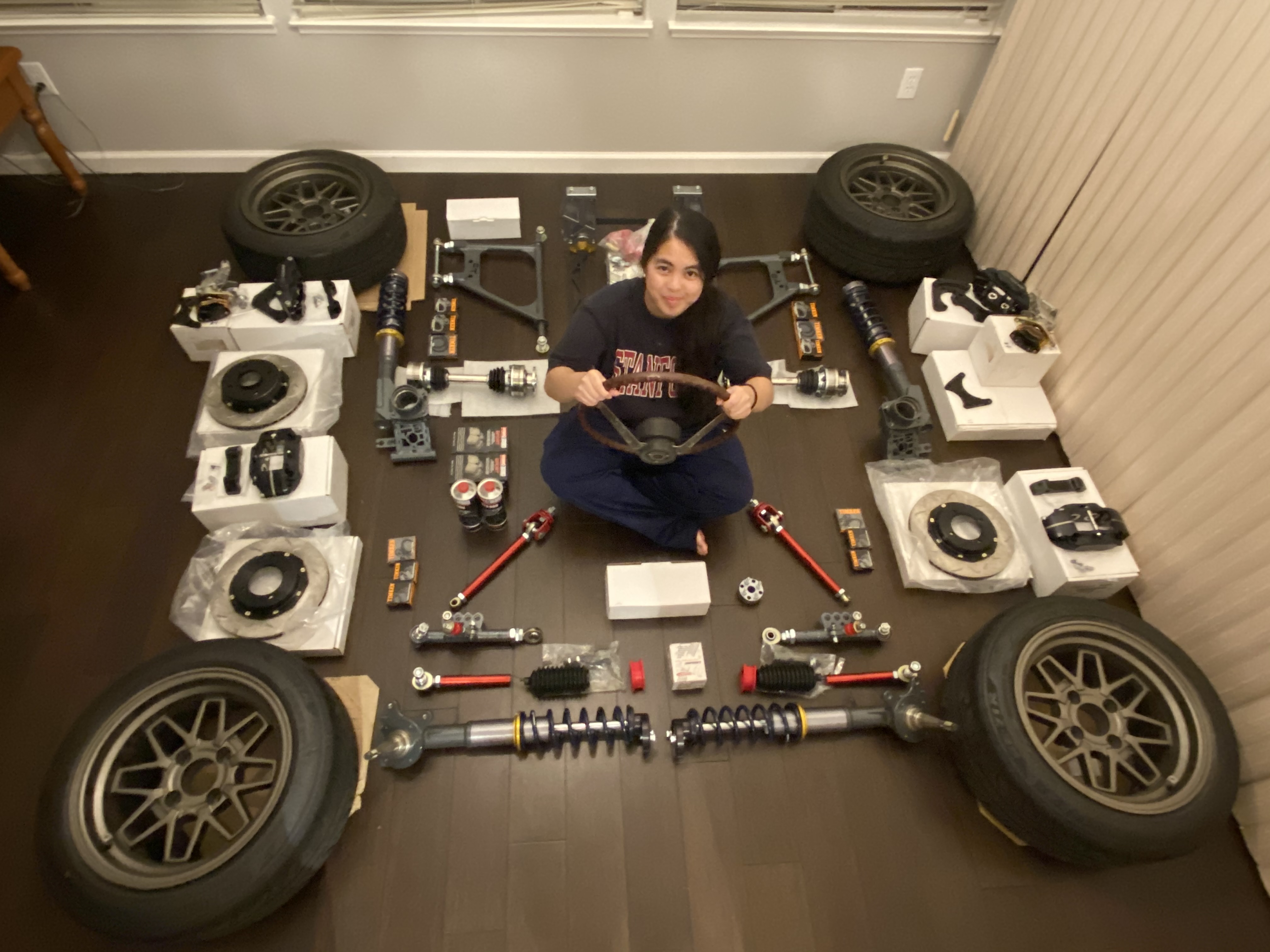

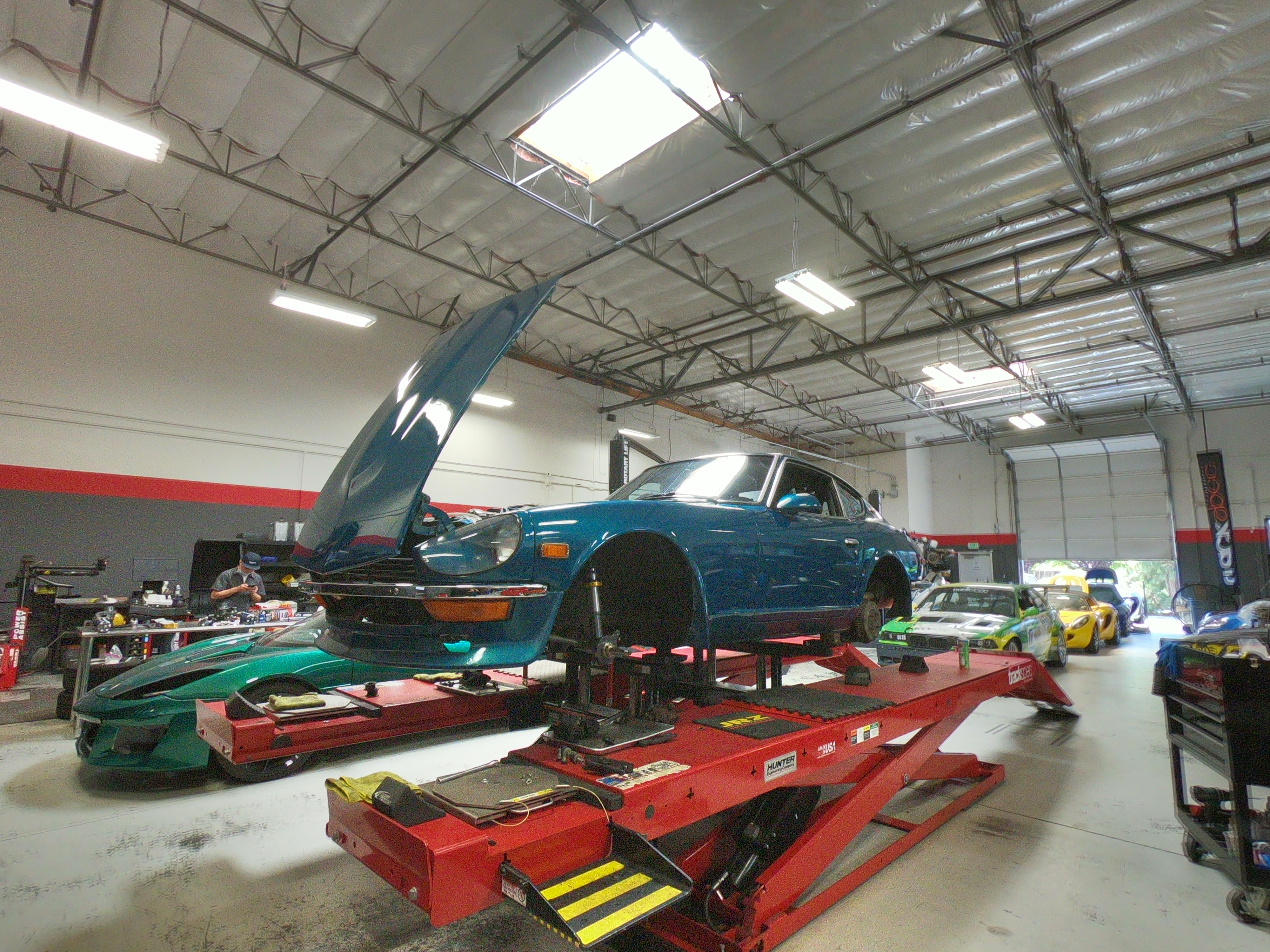

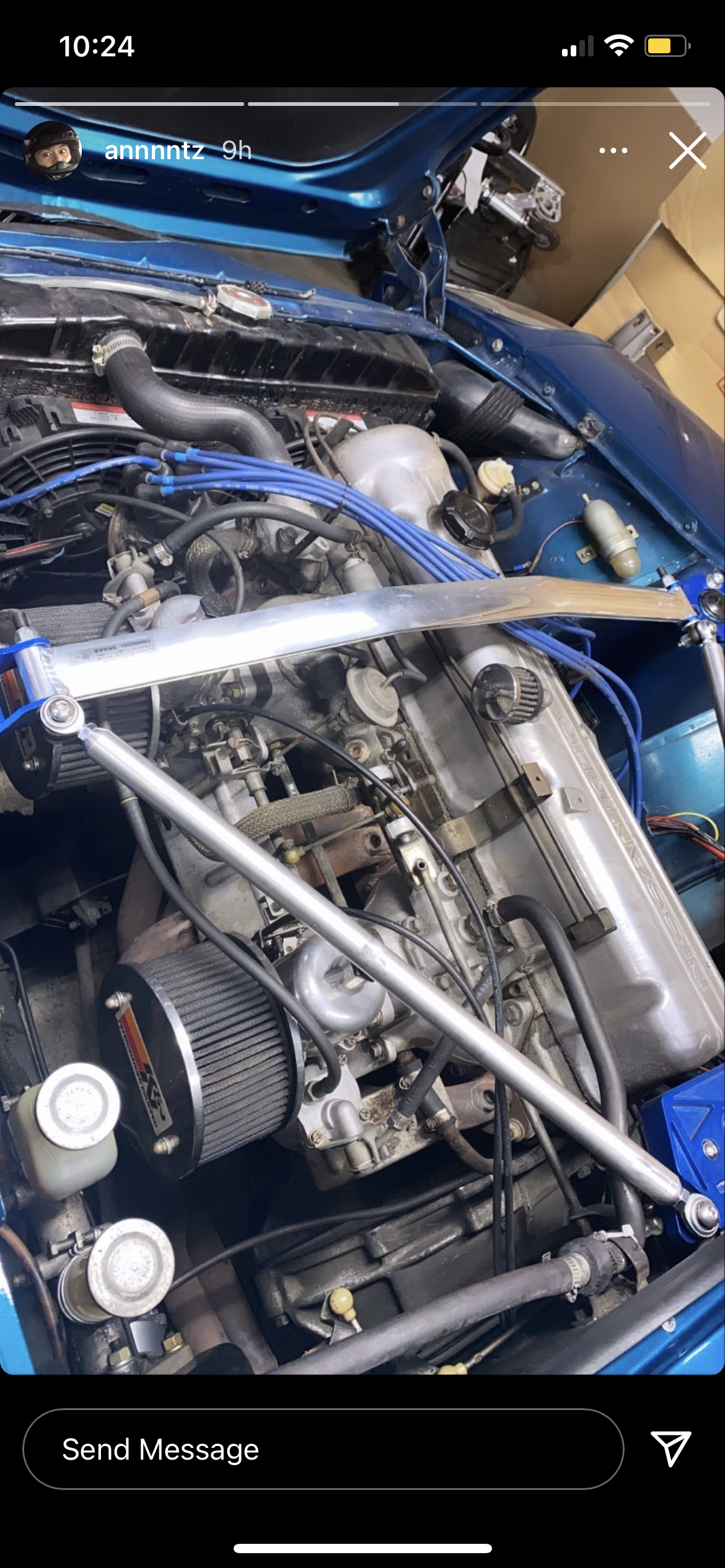

Installation of our ZCG Big-Brake kit as well as our ZCG CV Axles was performed by Trackspec Autosports. Hazel also had them install full suspension from Techno Toy Tuning including Evolved Coilovers (with Koni dampers and HyperCo springs), lower control arms, inner and outer tie rods, drop mounts, dogbone, steering coupler, urethane bushings, and front strut tower tri-bar. Wheels are 15×8.5 AME / Fatlace Fzero2:

Hazel documented the installation in a neat video, enjoy!

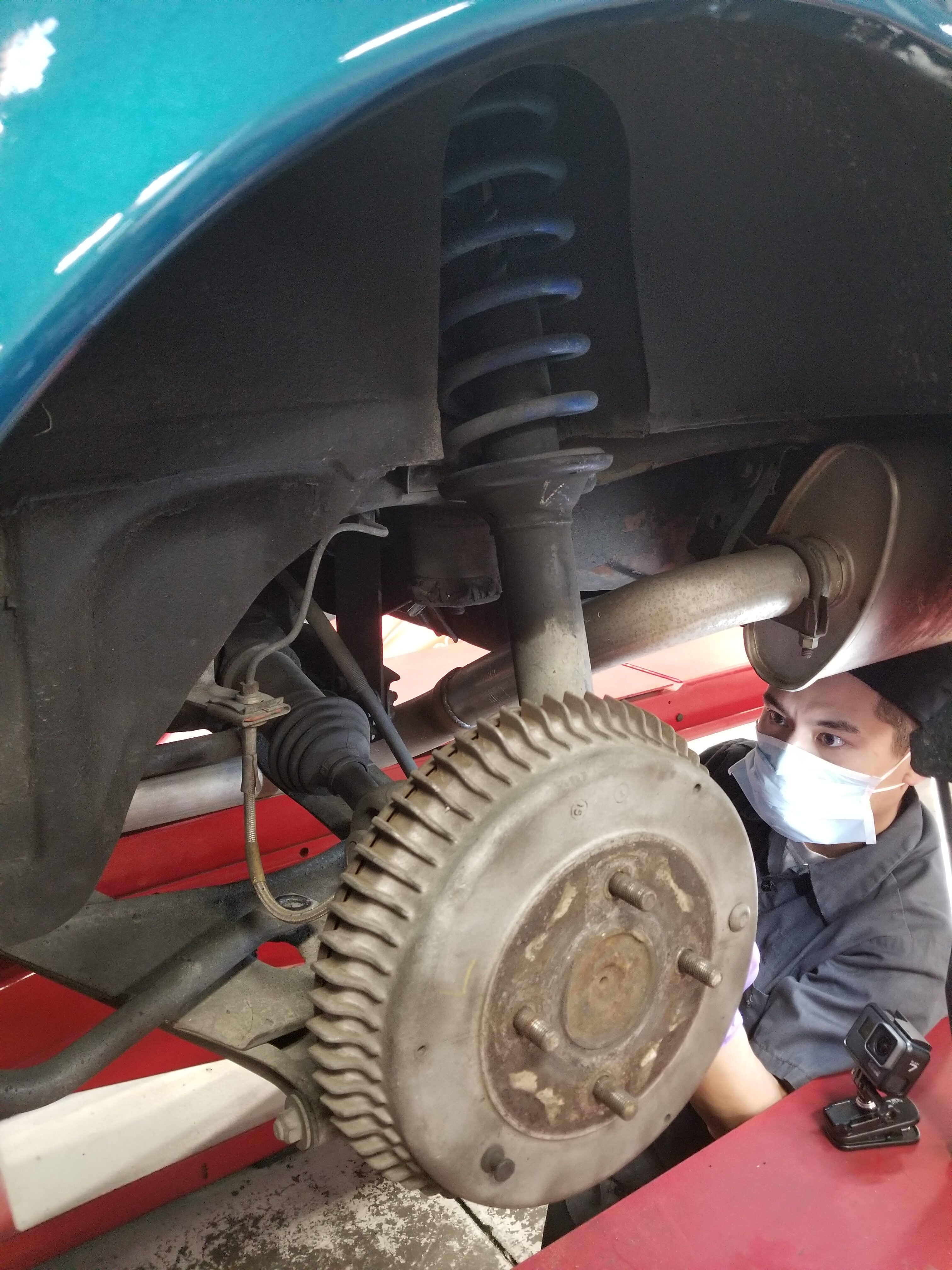

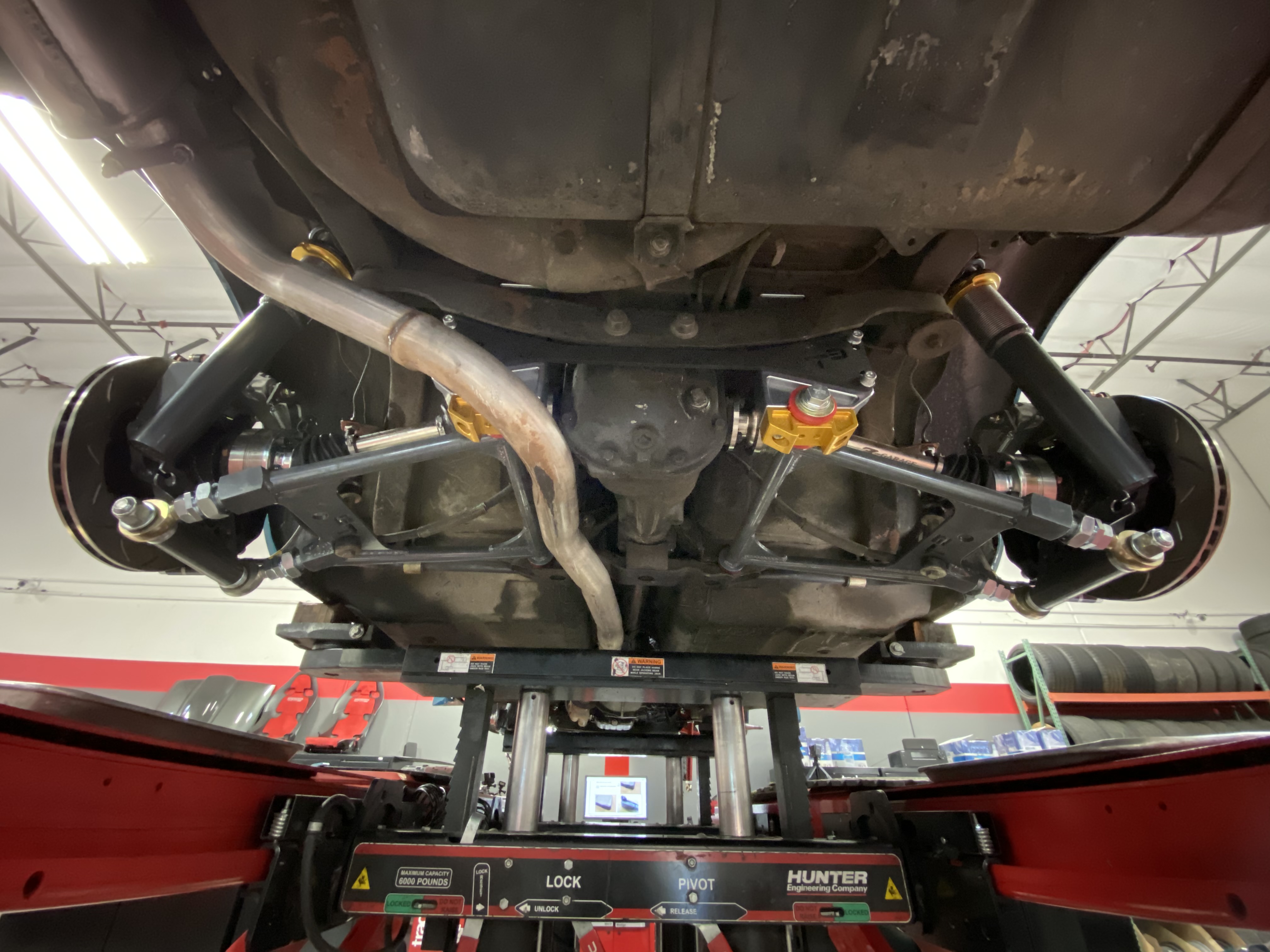

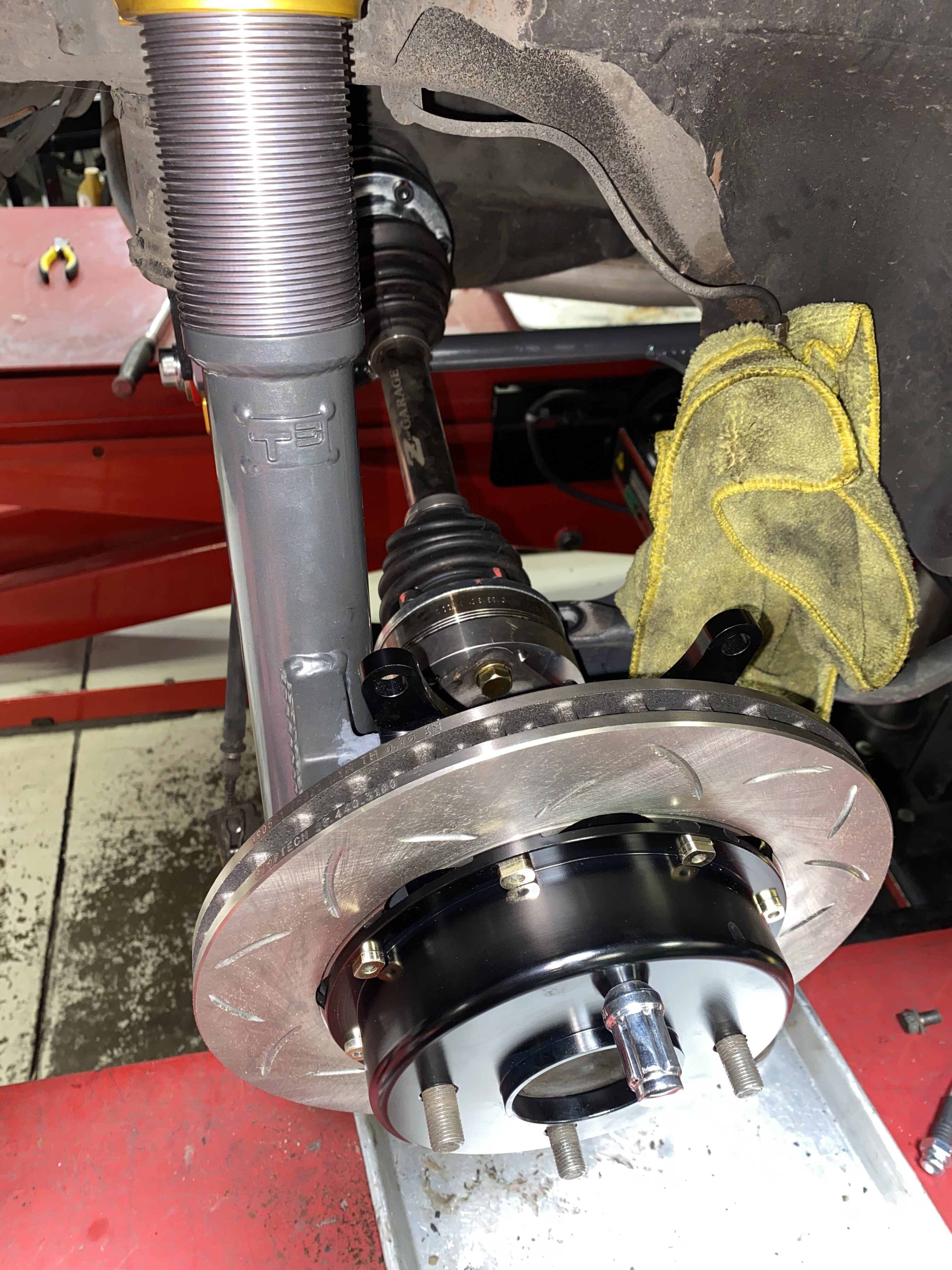

A few pictures of ZCG Big-Brakes replacing stock disc/drum units on Hazel’s Z:

Our Z Car Garage CV Axles help transmit power to the ground and ensure smoother operation compared to your standard half shafts. We have over 100 CV axle kits on customer cars and we are stoked with all of the positive feedback.

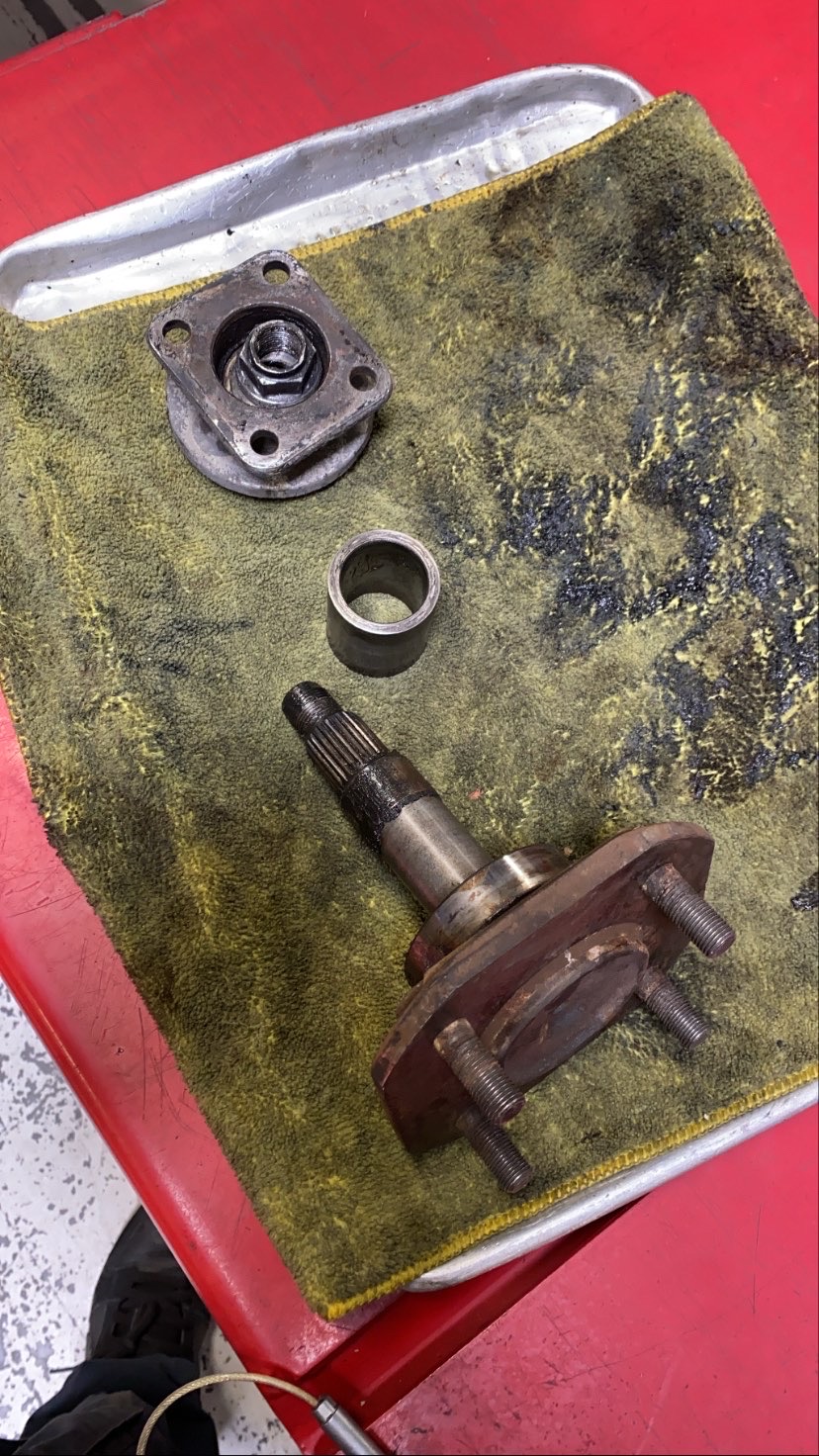

Hazel’s ZCG CV Axle set vs. stock half shaft:

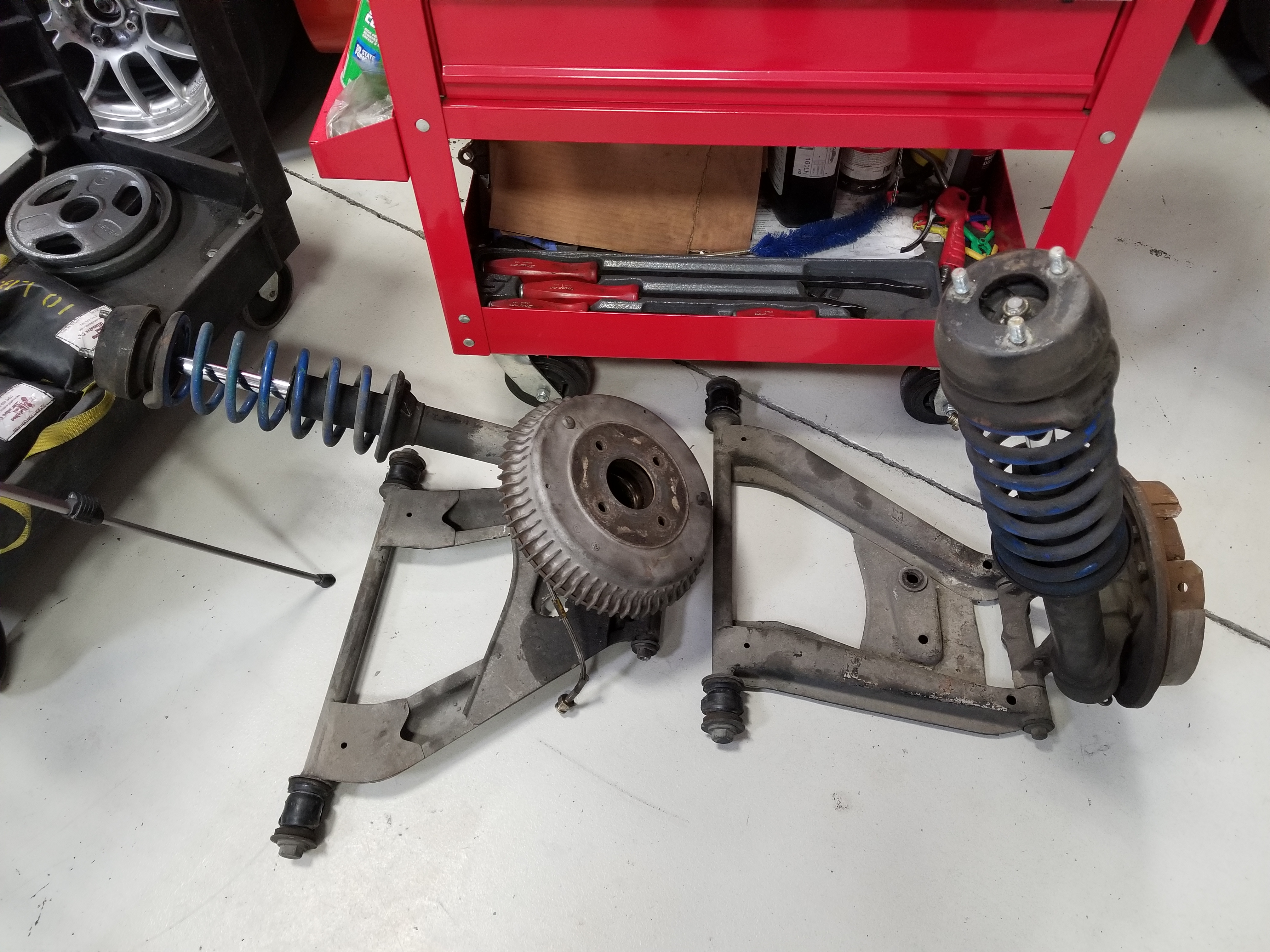

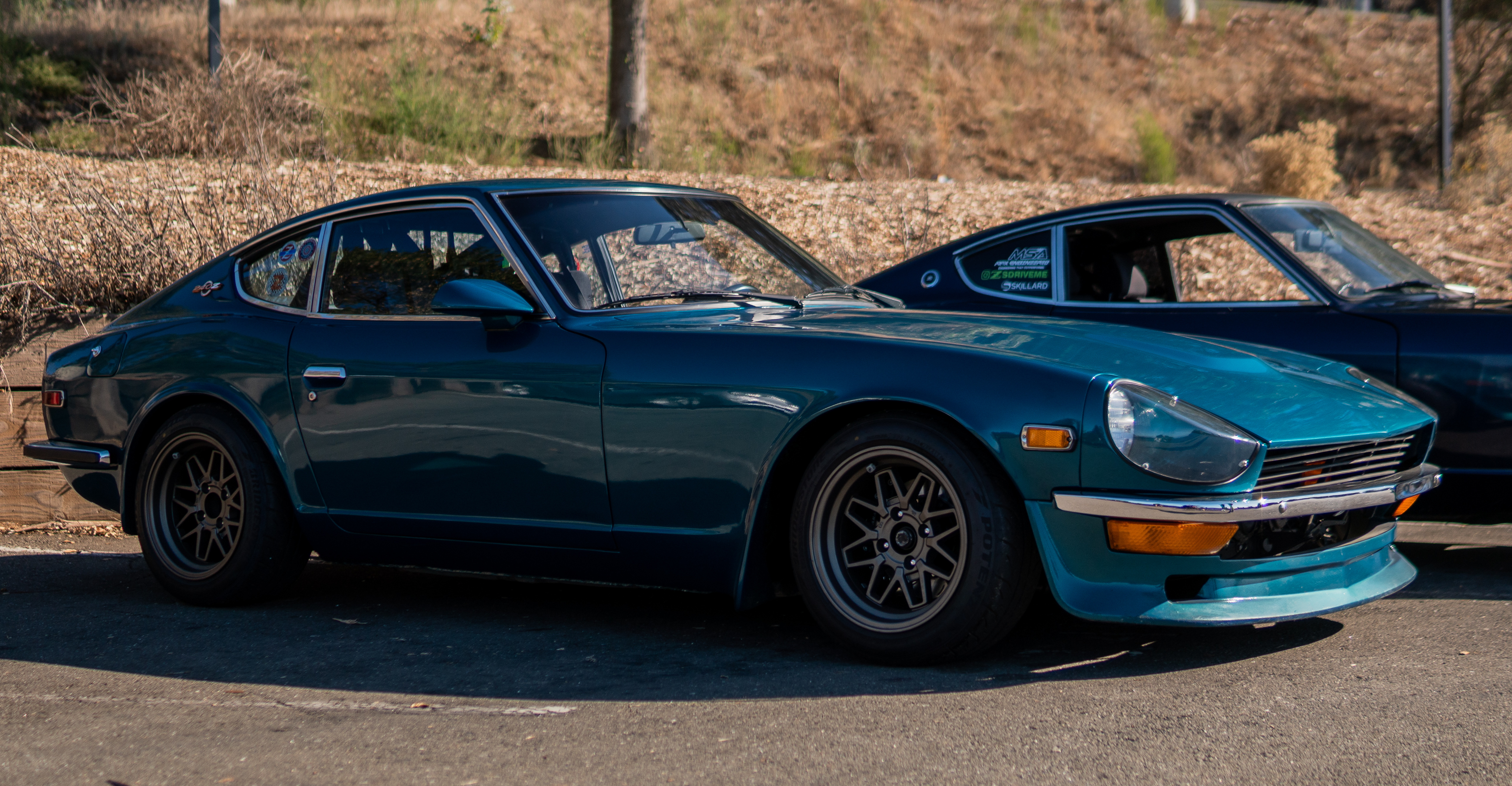

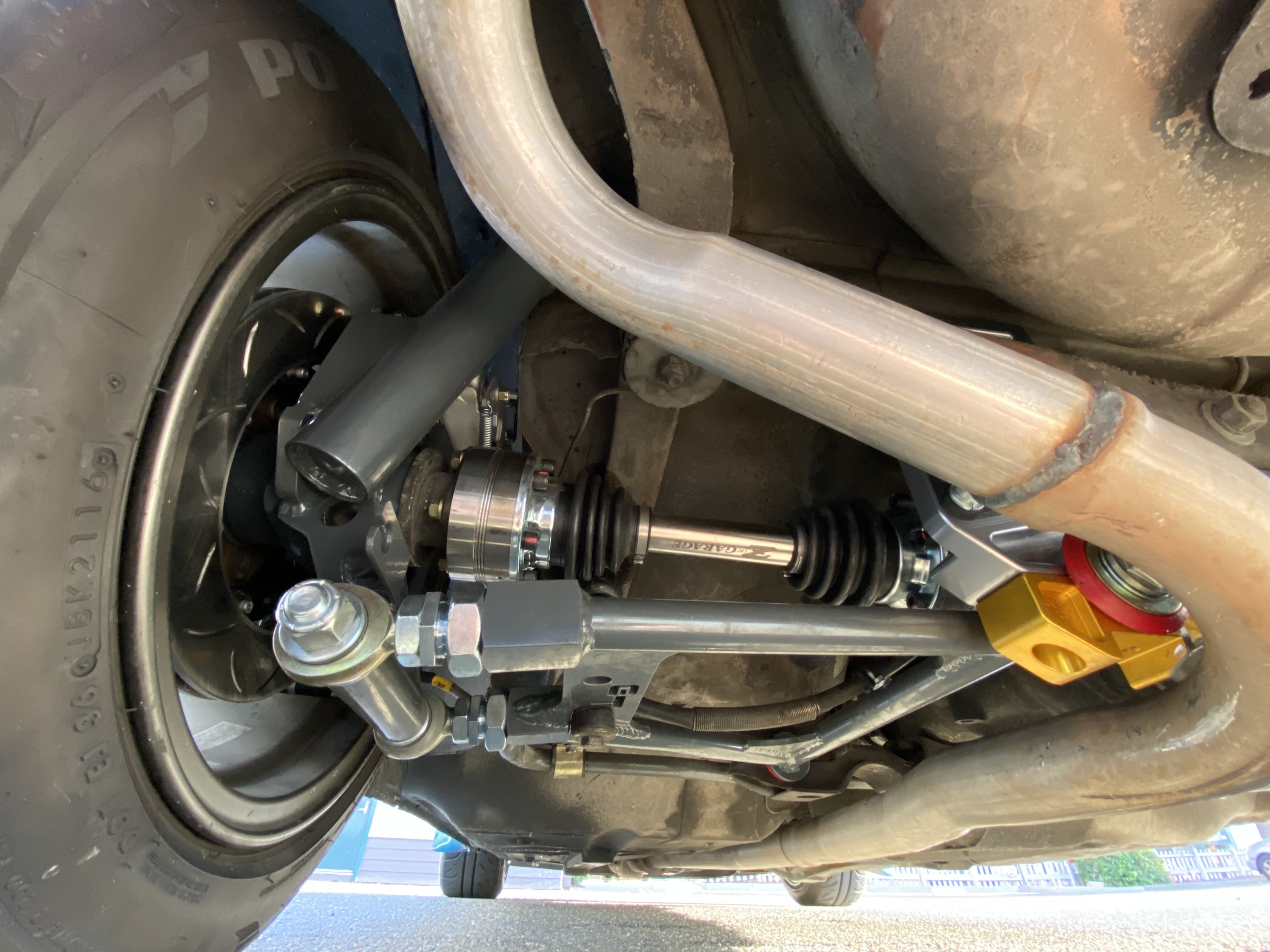

Before and after the new CV Axles, Big-Brakes and T3 suspension:

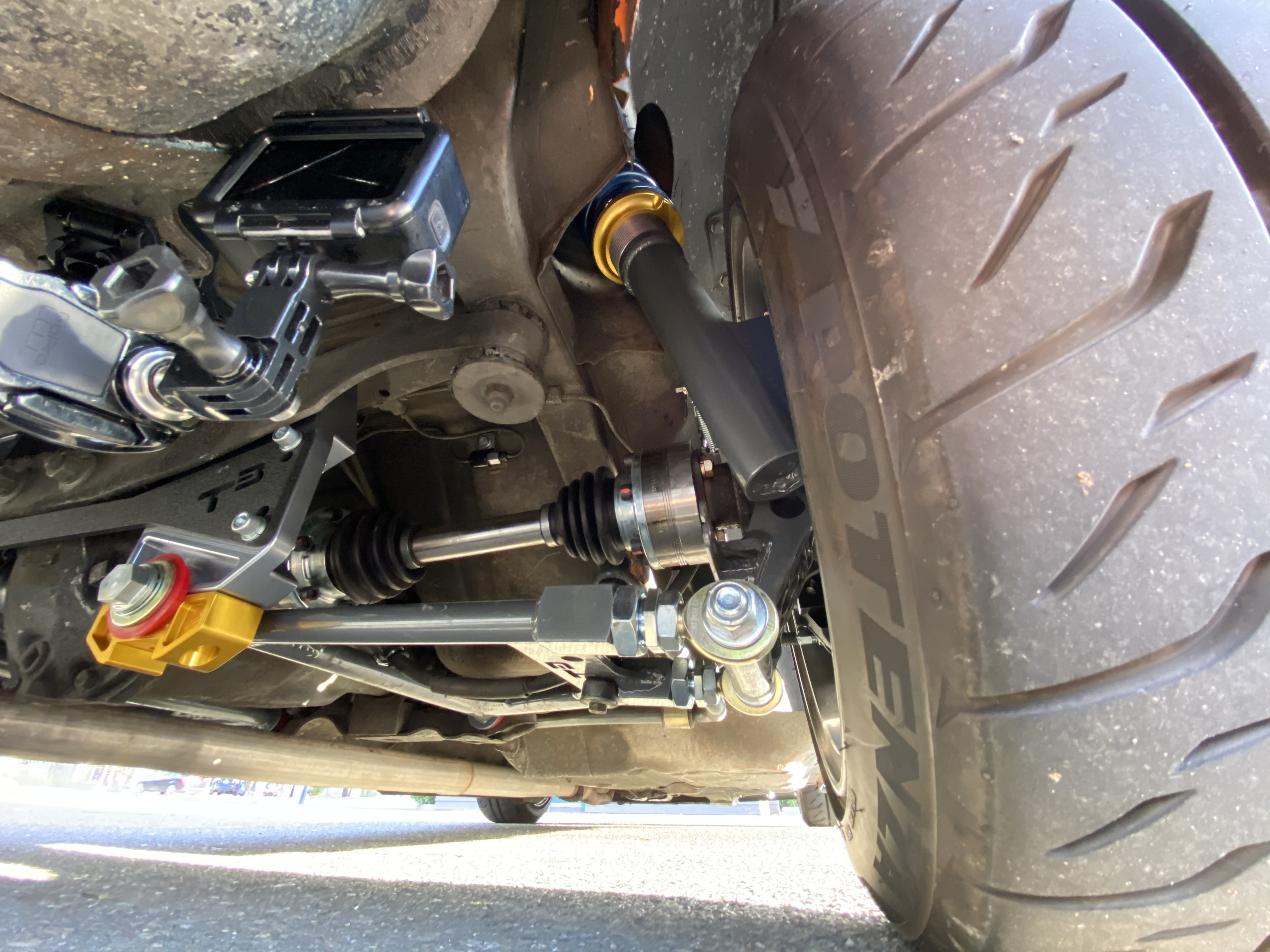

In another brilliant video from Hazel, she mounted a GoPro camera to capture the suspension and new CV axles in action. Bravo, Hazel!

Hazel is Enjoying The Ride

Beyond ease of installation and quality components, our Big-Brakes perform by offering superb pedal feel…everyone that drives our demo Z confirms! This is a direct result of working with Stoptech to create a totally bolt-in solution requiring no M/C change or additional proportioning valve/adjustments. Hazel was very happy as well with great feedback on our ZCG CV Axles too!

“Brakes: Finally – no more pumping the brakes and down shifting for every stop light! The stock drum brakes are one of my least favorite things about the Z car, especially with a modified engine. It feels great to know that my car can stop on a dime. Especially since I plan to do the occasional track days, a good brake kit was a must for me, and this delivered.

CV Axles: Power transfer to the wheels feels much smoother now. Previously, there would be huge dip in the rear end of the car on acceleration before you could feel the power go to the wheels and drive the car forward. Now – nothing but “buttery” smooth power transfer. No more delay once my foot is on the throttle.

I’ve only been to one track day at Thunderhill West so far with this set up, but really like it so far! It handled the course well this past weekend with no issues.”
